SEMI-AUTO TABLET/CAPSULE COUNTER

产品类别：半自动数粒机

产品型号：CVC SC202

产品介绍：

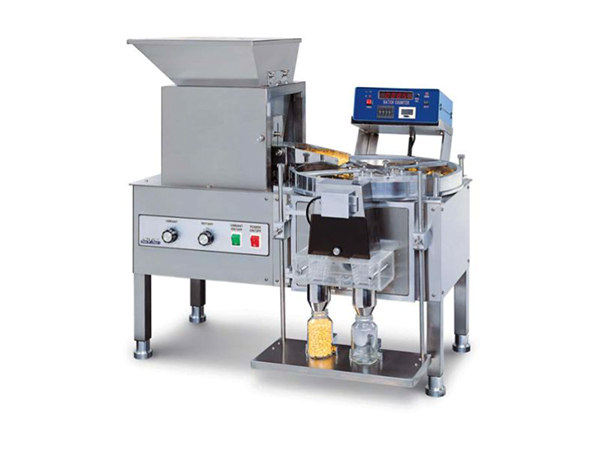

The CVC SC202 is equipped with two bottle nozzles for continuous counting and filling. One bottle is always in place for filling. The operator simply picks up a full bottle and replaces it with an empty bottle.

服务热线：0512-83636368

在线咨询立即询问

机台特色
产品参数
可用选项

STANDARD FEATURES
• Stainless steel construction with acrylic housing, meets cGMP standards.
• A unique sensor design prevents miscounts caused by voltage change or direct light to the counting head.
• Counting speed is adjustable.
• The vibrator tablet/capsule loading chute speed is adjustable to equal the counting speed.

CVC SC202 Technical Speciﬁcations
Capacity (per minute.)	Tablet 1,000 - 1,800 Capsule 1,300
Bottle Diameter	1 ⅛" to 4 ⅜" (30mm - 110mm)
Bottle Opening	1" to 4" (25mm-100mm)
Bottle Height	2" to 7⅞" (50mm-200mm)
Product Length	¼" to 1⅛" (5mm-30mm)
Product Width/Diameter	¼" to ¾" (5mm-20mm)
Power Source	110-120V or 220-240V 50/60 Hz / 1 phase
Power Consumption	300 VA
Machine Dimensions	2'-11" x 2'-2" x 2'-9" (879mm x 658mm x 826mm) (L x W x H)

AVAILABLE OPTIONS
• A dust accumulator is attached inside of the machine to protect machine count accuracy.
