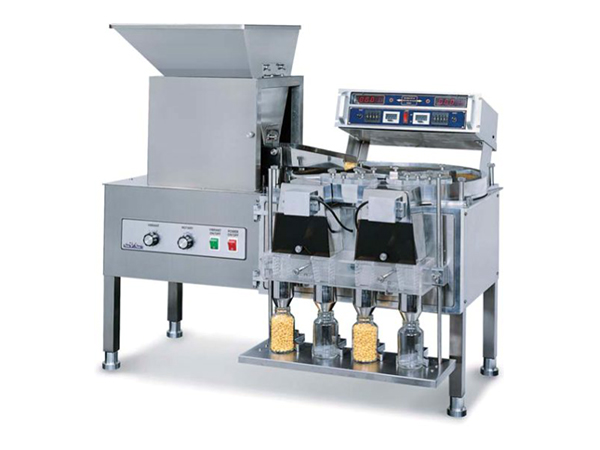

SEMI-AUTO TABLET/CAPSULE COUNTER

产品类别：半自动数粒机

产品型号：CVC SC204

产品介绍：
Counting speed for the model CVC SC204 is double that of the CVC SC202 when running tablet products. Easy operator movements include placing two empty bottles and taking away two filled bottles.

服务热线：0512-83636368

在线咨询立即询问

机台特色
产品参数
可用选项

STANDARD FEATURES
• Stainless steel construction with acrylic housing, meets cGMP standards.
• A unique sensor design prevents miscounts caused by voltage change or direct light to the counting head.
• Counting speed is adjustable.
• The vibrator tablet/capsule loading chute speed is adjustable to equal the counting speed.

CVC SC204 Technical Speciﬁcations
Capacity (per minute.)	Tablet 2,000 - 3,600 Capsule 1,300
Bottle Diameter	1⅛" to 4" (30mm-100mm)
Bottle Opening	1" to 4" (25mm-100mm)
Bottle Height	2" to 7⅞" (50mm-200mm)
Product Length	¼" to 1⅛" (5mm-30mm)
Product Width/Diameter	¼" to ¾" (5mm-20mm)
Power Source	110-120V or 220-240V 50/60 Hz / 1 phase
Power Consumption	350 VA
Machine Dimensions	3'-0" x 2'-6" x 2'-8" (920mm x 750mm x 810mm) (L x W x H)

AVAILABLE OPTIONS
• A dust accumulator is attached inside of the machine to protect machine count accuracy.
