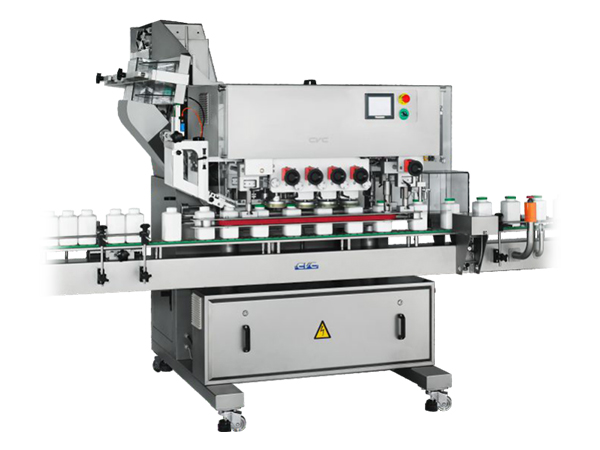

INL .INE CAPPER
产品类别：理盖旋盖机
产品型号：CVC 1206
产品介绍：
The CVC 1206 Capper is a very flexible machine designed to apply and tighten screW-on caps onto containers at rates of up to 150 bottles perminute. The CVC 1206 is Siemens PLC controlled. The system is designed with two pair of belt tightening belt assemblies. Options include tower lamp, hopper level control, cap inspection (level cap, foil seal, and no cap), reject, and reject verification.
●Built to cGMP standards
●Stainless steel construction
●Quick and easy change over
服务热线：0512-83636368
在线咨询
立即询问
STANDARD FEATURES
●Siemens PLC Controlled
●Cap tightening station with 2 belt tighteningsystems
●9.1 cu ft. integrated cap hopper elevator
●ISO 9001:2000 certified
| CVC 1206 Technical Specifications |
| Speed | Up to 120 Bottles per Minute(BPM) |
| Cap Type | Plastic screw and CRC |
| Cap Height | ⅛” to ¾” (3mm - 22mm) |
| Cap Diameter | 1-⅛” to 2-¾” (30mm - 70mm) |
| Bottle Height | 2" to 7-⅞" (50mm to 200mm) |
| Bottle Diameter | 1-⅛” to 4½" (30mm - 114 mm) (maximum 7½” bottle diameter on a 6" wide conveyor) |
| Bottle Body Height | 2" (51mm) below the shoulder |
| Power Source | 220V, 50/60 Hz, Single Phase |
| Power Consumption | 7.5 Amp |
| Air Pressure | Minimum 85 psi (ISO 8573-1) |
| Air Consumption | 15-20 cfm |
| Machine Dimensions | 5'-3" x 3'-8" x 7'-5" (1591mm x 1105mm x 2264mm) (L x W x H) |
| Machine Weigh | 1684 lbs. (764kg) |
| Hopper Weight | 397 lbs. (180kg) |
| Noise Level | 78 dB |
AVAIL ABLE OPTIONS
●Motorized sanitary conveyor (6" widebelt available)
●Tower lamp, hopper level control
●Cap inspection package (level cap, nocap, foil presence)
●Rejection system, reject confirmation
●Dual-belt gripping system, 21 CFR Part 11 License
